Plate PN6 Stainless Steel Flanges Connecting Efficiency For
Plumbing And Piping Systems
Size range: DN15 to DN 2000
Design : plate falnge 12820-80, welding neck flange 12821-80
Pressure: PN6, PN10, PN16, PN25, PN40
Material: Carbon steel CT-20. Stainless steel 304/304L, 316/316L
Coating: rust-proof oil, cold and hot galvanize
Product parameters
| Material | 1. Stainless Steel ASTM/ASME A/SA182 F304, F304L, F316, F316L,
ASTM/ASME A/SA351 CF8, CF3,CF8M, |
| CF3M, DIN1.4301, DIN1.4306, DIN1.4401, DIN1.4404, DIN1.4308,
DIN1.4408, DIN1.4306, DIN1.4409 |
| 2. Carbon Steel ASTM/ASME A/SA105 A/SA105N & A/SA216-WCB,
DIN1.0402, DIN1.0460, DIN1.0619 |
| Dimension | EN 1092-1 |
| Size | DN10 ~ DN4000 |
| Pressure | PN2.5, PN6, PN10, PN16, PN25, PN40, PN63, PN100, PN160, PN250,
PN320, PN400 |
| Type No. | Type 01 Plate Flange (slip on) for Welding, Type 02 Loose Plate
Flanges with Weld On Plate Collar or for lapped pipe end, Type 04
Loose Plate Flanges with Weld Neck Collar, Type 05 Blind Flange,
Type 11 Weld Neck Flange, Type 12 Hubbed Slip On Flanges for
Welding, Type 13 Hubbed Threaded Flanges, Type 21 Integral Flange,
Type 32 Weld on Plate Collar, Type 33 Lapped Pipe End, Type 34 Weld
neck Collar, Type 35 Welding Neck, Type 36 Pressed collar with long
neck, Type 37 Pressed Collar |
| Face Type | A - Flat Face (FF), B - Raised Face (RF), C - Tongue, D - Groove, E
- Spigot, F - Recess, G - O-ring spigot |
| H - O’ring groove |
| Coating | Anti-rust Paint, Oil Black Paint, Yellow Transparent, Zinc Plated,
Cold and Hot Dip Galvanize |
Product customization
| SIZE | MATERIAL | FLANGE TYPE |
| 1/2"-80" | Stainless Steel | weld neck flange |
| Slip on Flange |
| socket weld flange |
| LAP Joint Flange |
| Threaded flange |
| blind flange |
| CARBON STEEL, STAINLESS STEEL | weld neck flange |
| Slip on Flange |
| socket weld flange |
| LAP Joint Flange |
| Threaded flange |
| blind flange |
| Sealing face of flanges | RF with serrated finish |
| FF with 3 waterlines |
| FF with smooth finis |
| RTJ (Ring Joint Type) |
| FF with serrated finish |
| RF with water lines |

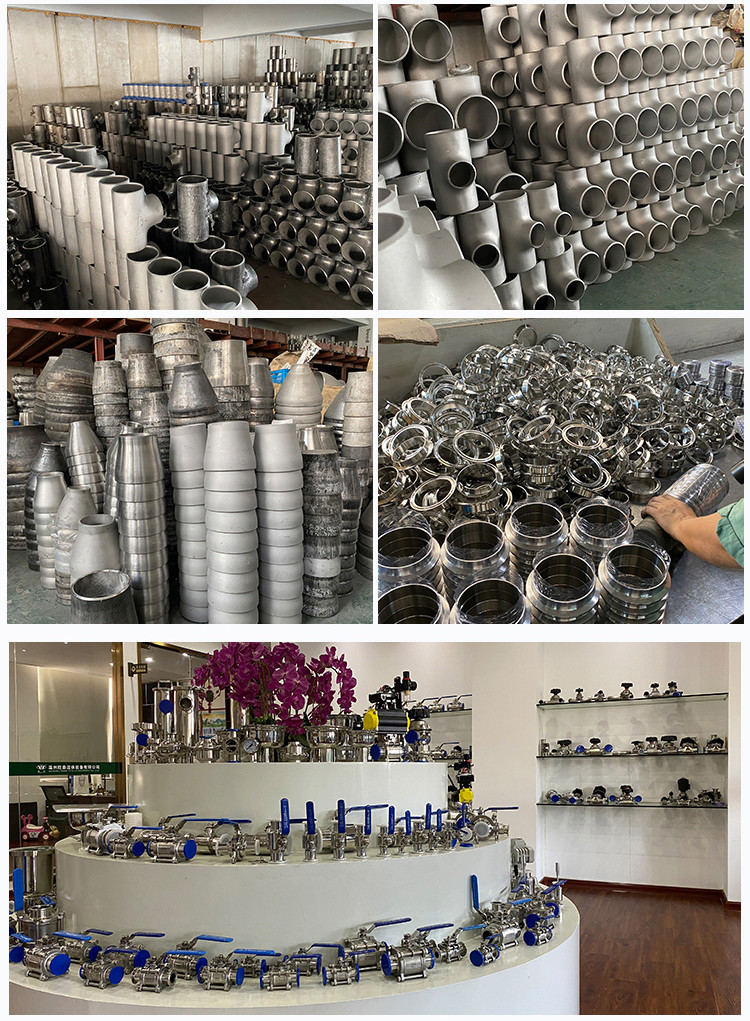

Product detail
Product application
FAQ
1.How can I get the price?
-We usually quote within 24 hours after we get your inquiry(Except
weekend and holidays).
-If you are very urgent to get the price, please email us or
contact us in other ways so that we can offer you a quote.
2. Can I buy samples placing orders?
-Yes.Please feel free to contact us.
3.What is your lead time?
-It depends on the order quantity and the season you place the
order.
-Usually we can ship within 3-15 days for small quantity, and about
30 days for large quantity.
4.What is your payment term?
-T/T,L/C,D/P
5.What is the shipping method?
-It could be shipped by sea,by air or by
express(EMS,UPS,DHL,TNT,FEDEX and ect).
Please confirm with us before placing orders.
6.How do you make our business long-term and good relationship?
-1. We keep good quality and competitive price to ensure our
customers benefit ;
-2. We respect every customer as our friend and we sincerely do
business and make friends with them,no matter where they come from.
